Why Microscopic Melting Point Apparatus Is Essential For Pharmaceutical Quality Control

In pharmaceutical quality control, subjective visual observation of melting ranges creates hidden dangers. It leads to operator variance, batch rejection risks, and potential compliance failures. Standard heating blocks rely entirely on the human eye. They struggle to deliver the precision needed for modern active pharmaceutical ingredients. While traditional setups confirm basic purity, today's complex APIs demand robust phase-transition documentation. Basic equipment simply cannot provide this level of detail. You need a better solution to protect your laboratory's data integrity.

This guide evaluates why upgrading your equipment is a crucial risk-management decision. We will explore how modern systems meet strict pharmacopeia compliance. You will learn actionable strategies to optimize your high-throughput lab workflows. By leveraging advanced optics and automation, you can virtually eliminate manual testing errors. The result is a more resilient, audit-ready laboratory environment.

Key Takeaways

• Precision over Subjectivity: Optical lens magnification combined with digital video recording eliminates the ±1–2°C operator error inherent in manual testing.

• Handling Complex APIs: Hot stage melting point analysis is uniquely equipped to identify polymorphism, sublimation, and decomposition in active pharmaceutical ingredients.

• Workflow Optimization: Adopting a "rough vs. fine" measurement strategy (rapid 10°C/min baseline, followed by precise 1°C/min scanning) cuts per-sample testing time by up to 66%.

• Audit Readiness: True GMP compliance requires instruments with 21 CFR Part 11 capabilities, strictly locked parameters, and validated IQ/OQ documentation.

The Limitations of Basic Capillary Melting Point Measurement in Pharma QC

Traditional Thiele tubes and basic heating blocks present a major subjectivity trap. They depend solely on human vision to detect crucial thermal milestones. An operator must watch for the initial collapse point and track it to the final clearing point. This continuous monitoring causes severe eye fatigue. Technicians routinely record inconsistent data across different shifts. A ±1–2°C human error margin is common. This margin is unacceptable for stringent modern quality control.

False melting point depression often misleads lab technicians. Without high-resolution optical tools, operators mistake sample preparation errors for actual API impurities. Standard capillary melting point measurement demands strict packing heights of 2 to 3 millimeters. Over-packing creates internal temperature gradients inside the tube. These gradients falsely widen the recorded melting range. Moisture contamination also depresses the final value. Basic visual setups cannot differentiate between a wet sample and a genuinely impure compound.

We must also distinguish between pharmacopeia targets and thermodynamic absolutes. Thermodynamic melting points represent theoretical absolutes under perfect conditions. Pharmaceutical labs do not need these theoretical numbers. They require pragmatic, highly reproducible pharmacopeia targets. Organizations like the USP and EP standardize these practical testing methods. Relying on outdated manual tools jeopardizes your ability to meet these standardized industry expectations consistently.

• Common mistake: Re-melting a previously tested sample. Always use a fresh capillary tube.

• Common mistake: Packing the powder loosely. Tap the tube to ensure dense, uniform packing.

• Common mistake: Ignoring ambient room temperature drafts near the testing station.

How Optical Lens Magnification Solves Atypical Phase Transitions

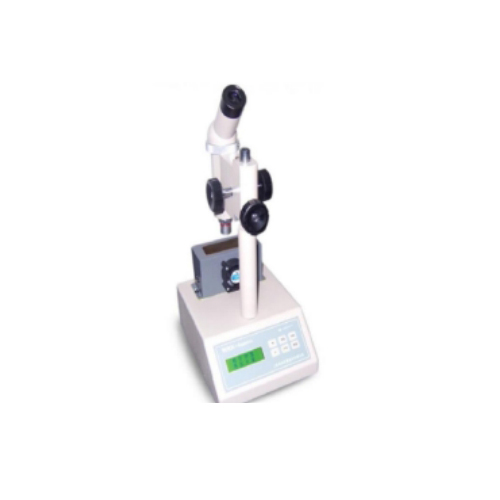

Many active pharmaceutical ingredients show multiple crystal forms. This phenomenon is known as polymorphism. Each polymorph exhibits a distinct thermal profile. Tracking these exact lattice shifts requires specialized equipment. A premium microscopic melting point apparatus allows visual tracking of these structural changes. You can observe the exact moment the crystal lattice shifts before total liquefaction occurs.

QC chemists frequently encounter compounds that degrade before they melt. High-definition optical lens magnification melting point capabilities solve this issue. They allow operators to differentiate between actual liquefaction and chemical decomposition. You can clearly see discoloration, bubbling, or charring in real-time. This visual clarity prevents false data entries. It ensures you do not mistake a decomposition point for a clearing point.

Standard glass tubes fail when analyzing blocky or flakey excipients. They are designed exclusively for fine powders. Hot stage melting point integration excels in these difficult scenarios. It places the sample directly on a heated slide under a microscope. This method is ideal for studying thermal stability. It provides unparalleled insight into atypical phase transitions. Analysts gain a clear window into complex excipient behavior.

Recognizing Atypical Transitions

• Sublimation: The solid vaporizes directly. Condensation appears on the cooler upper walls of the tube.

• Decomposition: The sample turns brown or black. Bubbles may form as gases release.

• Sintering: The powder pulls away from the glass walls before true melting begins.

Bridging Visual Verification with the Digital Melting Point Analyzer

Modern automation relies heavily on photoelectric detection. Digital units measure light transmittance to establish values objectively. Solid crystalline powders are generally opaque. They block the internal light source. As the substance liquefies, it becomes transparent. The sensor detects this increase in light transmittance. This automated optical shift defines the melting sequence without human guesswork.

Despite this photoelectric accuracy, visual proof remains essential. Regulatory bodies like the FDA and EMA often demand visual evidence of the test. A top-tier digital melting point analyzer bridges this gap perfectly. It retains high-definition cameras alongside its photoelectric sensors. These cameras record the exact melting sequence as a video file. You can attach these files directly to your Laboratory Information Management System (LIMS).

Automated units also unlock high-throughput testing strategies. They allow labs to process multiple capillaries simultaneously. You can optimize your daily workflow using a dual-step protocol. This method drastically reduces wait times while preserving high accuracy.

1. Rough Measurement: Heat the furnace rapidly at 10 to 20°C per minute. Find the approximate temperature zone where the substance collapses.

2. Cooling Phase: Let the automated cooling fans quickly drop the block temperature down to 15°C below the rough estimate.

3. Fine Measurement: Resume heating at a strictly locked 1°C per minute. This slow rate prevents thermometer lag and pinpoints the exact clearing point.

Risk Management: Regulatory Compliance and Data Integrity

A true pharmaceutical melting point instrument must offer more than accurate heating. It must serve as a fortress for data integrity. Facilities must adhere to 21 CFR Part 11 guidelines. This requires robust user profile management. Password protection prevents unauthorized access to testing protocols. Unalterable digital audit trails record every keystroke and parameter change. This transparency is non-negotiable during regulatory audits.

Purchasing an instrument without strict validation documents is a massive mistake. You need complete Installation Qualification (IQ) and Operational Qualification (OQ) protocols. Without these manufacturer-supplied documents, your GMP validation will stall. IQ proves the device was installed correctly in your specific environment. OQ proves it functions exactly as advertised under your typical load conditions.

Many labs mistakenly believe digital sensors are maintenance-free. This is a dangerous myth. Hidden temperature drift occurs over time due to sensor aging. Routine calibration is mandatory. You must use Certified Reference Materials (CRMs) to verify thermal accuracy. Benzoic acid, which melts at exactly 122°C, is a standard calibration benchmark. Regular CRM testing guarantees your data remains legally defensible.

Procurement Framework: Selecting Your Next Melting Point Tester

Evaluating a new melting point tester requires a structured approach. You must look beyond basic heating functions. Start by examining sample type compatibility. Ensure the unit supports standard tubes for milled powders. However, it should also accommodate hot-stage setups if your organic crystalline substance testing involves non-powders. Flexibility is critical for diverse lab portfolios.

Next, review the temperature range specifications. Standard pharmaceutical applications rarely exceed 300°C. However, advanced material research might demand specialized thermal blocks capable of reaching 400°C. Always buy slightly above your current maximum need.

Assess the throughput capacity carefully. High-volume labs need batch-processing capabilities. Look for machines that handle three to six simultaneous capillaries. Evaluate the speed of the internal cooling fans. Fast cooling between heating cycles drastically increases your daily testing volume. Finally, consider environmental robustness. Ensure the sensor remains stable against HVAC fluctuations. Ideal laboratory conditions require a stable 18 to 28°C ambient room temperature.

Step-by-Step Evaluation Checklist

Conclusion

Transitioning to an advanced digital or microscopic analyzer is not merely an equipment upgrade. It is a highly effective defensive strategy. It protects your facility against regulatory audits and prevents costly batch rejections. Manual observation methods carry too much inherent risk for modern pharmaceutical manufacturing.

Lab managers should take immediate action. First, audit your current visual-manual variance rates across different technicians. Second, review your existing 21 CFR Part 11 gaps regarding phase-transition data. Finally, request an operational demo of a modern unit. Prioritize equipment that offers seamless LIMS integration, comprehensive IQ/OQ support, and automated video recording.

FAQ

Q: What is the difference between a standard melting point tester and a microscopic melting point apparatus?

A: Standard testers rely on basic magnification or blind photoelectric sensors. They only detect crude phase changes. Microscopic or hot-stage apparatuses utilize high-powered optics. They let you observe complex micro-transitions like polymorphism, sintering, or chemical decomposition in real-time before total liquefaction occurs.

Q: How does sample preparation affect melting point determination?

A: Melting point determination relies heavily on preparation. Samples must be bone-dry, finely ground under 0.1mm, and uniformly packed to a strict 2-3mm height. Over-packing creates internal temperature gradients. This results in falsely widened melting ranges and inaccurate purity assessments.

Q: Why is 1°C to 2°C per minute the standard heating rate for fine measurement?

A: Faster heating rates cause thermometer lag. This happens when the heating block's temperature outpaces the actual heat transfer to the powder inside the capillary. It skews the recorded data higher than reality, hiding potentially dangerous impurities in the compound.

Q: Can a digital melting point analyzer handle hygroscopic compounds?

A: Yes, but it requires special care. You must use precisely sealed capillary tubes. The instrument's sample chamber must accommodate these sealed setups perfectly. This prevents ambient room moisture from entering the tube and artificially depressing the recorded thermal value.
