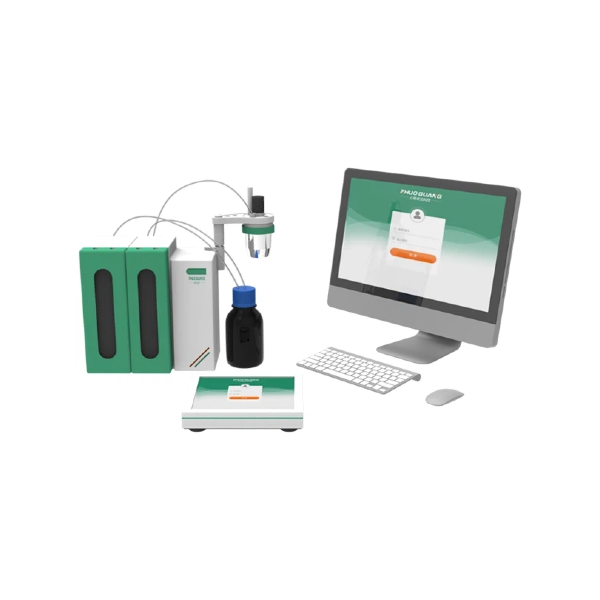

Automatic Potential Titrator GT70 for Mixed Acid Analysis

Separating reactions inside a mixed acid system is rarely straightforward. When more than one acid is present, the challenge is no longer just performing a titration, but identifying where one reaction ends and another begins. This becomes especially critical when accurate calculation depends on distinguishing these stages clearly. In such cases, Automatic Potential Titrator GT70 from Zhuoguang Instrument provides a more reliable way to handle the complexity of hydrofluoric acid analysis in mixed acid environments.

Why Automatic Potential Titrator GT70 Is Useful for Hydrofluoric Acid Analysis in Mixed Acid

Mixed acid analysis introduces a level of difficulty that is often underestimated. Unlike a simple acid-base titration, where a single neutralization reaction defines the endpoint, mixed acid systems involve sequential reactions. Each reaction must be identified separately to ensure that the final result is meaningful.

This requirement makes endpoint recognition the central issue. Without a clear understanding of where each reaction occurs, even precise titrant addition cannot guarantee correct results. The GT70 addresses this by combining automated potential measurement with stable titration control, allowing laboratories to interpret complex reaction behavior more clearly.

Mixed acid analysis is more demanding than ordinary acid-base titration

One sample can contain more than one neutralization event

In the hydrofluoric acid case provided, the sample contains multiple acids that react at different stages during titration. When sodium hydroxide is used as the titrant, sulfuric acid is neutralized first, producing the first equivalence point. Only after this stage does hydrofluoric acid begin to react, leading to a second equivalence point.

This sequence is critical because the final calculation depends on the difference between these two points. The titration is not a single-step process, but a layered reaction where each stage must be clearly distinguished.

Such behavior is typical in mixed acid systems, where different components respond differently during titration. Without proper detection, these reactions can overlap or be misinterpreted.

Why endpoint recognition becomes especially important

In this type of analysis, identifying the endpoint is not just about finding where the reaction stops. It is about identifying specific transitions in the titration curve.

The method relies on detecting the midpoint of the sharp change in potential, which represents the equivalence point. In mixed acid systems, there are multiple such transitions, and each must be interpreted correctly.

If the endpoints are not clearly defined, the calculated result will not reflect the true composition of the sample. This is why automated potential detection is particularly valuable in these cases. It provides a more objective way to identify reaction stages compared to visual indicators.

How GT70 fits this application better

Understanding the advantage of potential-based measurement

Traditional titration methods often rely on visual indicators, which can be difficult to interpret in complex systems. In mixed acid samples, color changes may not correspond clearly to individual reaction stages.

Potential-based measurement offers a different approach. By monitoring changes in electrical potential during the reaction, the system can identify subtle transitions that are not visible to the eye.

This makes it easier to distinguish between multiple equivalence points. For hydrofluoric acid analysis, where the calculation depends on separating reaction stages, this level of precision is essential.

A system designed for demanding analytical conditions

The GT70 is structured to support more demanding titration tasks. Its configuration allows for stable liquid handling and consistent measurement, even when working with corrosive or complex samples.

The use of durable materials in the fluid pathway ensures that the system can operate reliably with aggressive reagents. Controlled dosing helps maintain accuracy across multiple runs, while consistent mixing ensures that reactions proceed evenly.

These characteristics are not just technical details. They directly affect the ability to perform complex titrations reliably. In mixed acid analysis, where both reaction control and endpoint detection are critical, such stability becomes a practical advantage.

What the hydrofluoric acid case actually shows

The provided case illustrates how the GT70 can be applied in a real laboratory scenario.

The method begins with preparing the mixed acid sample and diluting it with deionized water. This step ensures that the sample is suitable for titration and that the reaction can proceed under controlled conditions.

The titration is carried out using a 0.1 mol/L sodium hydroxide solution. A pH composite electrode is used to monitor the reaction, and the titration is performed in a standard 100 mL vessel.

This setup reflects a typical laboratory workflow. It does not rely on complex preparation or specialized conditions, making it practical for routine use.

The importance of identifying two equivalence points

The most critical aspect of this method is recognizing the two equivalence points.

The first equivalence point corresponds to the neutralization of sulfuric acid. This stage represents the completion of the initial reaction.

The second equivalence point corresponds to the neutralization of hydrofluoric acid. This is the stage that directly relates to the target measurement.

By identifying both points clearly, the system allows the calculation to focus specifically on the hydrofluoric acid content. This separation is what makes the method reliable.

How the result is calculated from EP1 and EP2

Why the difference between two points matters

The calculation of hydrofluoric acid content is based on the difference between the second and first equivalence points. This difference represents the amount of titrant consumed specifically for hydrofluoric acid.

The formula uses this volume difference, along with the concentration of the titrant and the mass of the sample, to determine the final result.

This approach ensures that the calculation isolates the contribution of hydrofluoric acid, rather than combining it with other components in the sample.

Connecting calculation accuracy with system control

Because the result depends on the difference between two measured values, any error in endpoint detection or volume measurement will directly affect the final result.

This is where automated control becomes important. Precise dosing ensures that the titrant volume is accurate, while reliable endpoint detection ensures that both equivalence points are identified correctly.

Without this level of control, the calculation would be less reliable, especially in complex systems where reaction stages are closely spaced.

The recorded case data supports repeatable analysis

The case data shows three results for hydrofluoric acid content, approximately 0.9205%, 0.9267%, and 0.9052%.

These values fall within a relatively narrow range, indicating good repeatability. For mixed acid analysis, where multiple reactions are involved, this level of consistency is significant.

It suggests that the method can produce stable results across repeated tests, which is essential for practical laboratory applications.

Interpreting the titration curve

The titration curve provides additional insight into the reaction process. By observing the changes in potential, operators can see where each equivalence point occurs.

This visual representation makes it easier to understand the method and verify the results. It also helps in explaining the process to others, which is useful in both research and quality control environments.

A table should summarize the mixed acid workflow

This table helps clarify the workflow and shows how each step contributes to the final result.

Why this application is a strong way to present GT70

Real applications demonstrate value more clearly

Technical specifications can describe what an instrument is capable of, but real applications show how it performs in practice.

The hydrofluoric acid case provides a concrete example of how the GT70 handles a challenging analytical task. It demonstrates not only the capability of the system, but also its practical value in laboratory work.

Complexity highlights the strength of the system

Mixed acid analysis is not a simple application. It requires precise control, clear endpoint detection, and reliable calculation.

By performing well in such a demanding scenario, the GT70 shows its suitability for complex analytical tasks. This makes its value more evident compared to simpler applications.

Conclusion

Complex titration tasks require more than basic functionality. They require a system that can interpret reaction behavior accurately and maintain control throughout the process. This is why Automatic Potential Titrator GT70 is particularly useful for hydrofluoric acid analysis in mixed acid systems. By enabling clear identification of multiple equivalence points and supporting reliable calculation, it transforms a difficult analytical process into a more controlled workflow. Backed by real application data from Zhuoguang Instrument, the GT70 Automatic Potential Titrator offers a dependable solution for laboratories dealing with complex acid analysis. Contact Zhuoguang Instrument today to learn how this system can support your analytical needs.

FAQ

1. What makes hydrofluoric acid analysis difficult in mixed acid samples?
Because multiple acids react at different stages, requiring clear separation of equivalence points.

2. Why is potentiometric titration suitable for this application?
It detects changes in potential, making it easier to identify multiple reaction stages.

3. How does GT70 improve result reliability?
By providing precise titrant control and accurate endpoint detection for complex reactions.

4. Can GT70 handle other complex titration methods?
Yes, it is designed to support demanding analytical tasks beyond simple titration.
