Views: 0 Author: Site Editor Publish Time: 2026-08-25 Origin: Site
Many chemical and biochemical reactions cause continuous changes in hydrogen ion concentration, resulting in gradual pH variation during the reaction process. When pH changes affect reaction speed, product formation, or measurement accuracy, maintaining a stable pH environment becomes essential.
pH-Stat titration is a constant-pH titration technique that automatically adjusts the addition of acid or base to keep the reaction system at a predefined pH value. Instead of adding titrant at a fixed rate or only determining an endpoint, this method measures how much titrant is required to compensate for pH changes caused by the reaction.
By combining real-time pH monitoring, automatic titrant control, and data recording, pH-Stat titration can provide information about reaction kinetics, enzyme activity, hydrolysis behavior, buffering capacity, and other pH-dependent processes.
pH-Stat titration is an automatic titration method that maintains a constant pH during a reaction by continuously monitoring pH changes and automatically adding a titrant when the measured value deviates from the preset level.
The basic process includes:
Measuring the reaction solution pH in real time.
Comparing the measured pH with the target pH value.
Automatically adding acid or base solution to correct the deviation.
Recording titrant consumption over time.
The main difference between conventional titration and pH-Stat titration is the control objective.
Traditional titration usually focuses on determining the amount of titrant required to reach an endpoint. In contrast, pH-Stat titration keeps the pH constant and uses titrant consumption as an indicator of reaction progress.
This makes it suitable for reactions where pH must remain stable throughout the measurement process.
The principle of pH-Stat titration is based on a closed-loop control system. The instrument continuously detects pH changes and automatically compensates for them by adjusting titrant addition.
A pH electrode is placed into the reaction system to monitor changes in hydrogen ion concentration.
During chemical or biochemical reactions, substances may be produced or consumed that affect acidity or alkalinity. As a result, the pH value moves away from the preset target.
For example, during enzymatic hydrolysis, the breakdown of protein molecules may generate acidic groups, causing the pH of the solution to decrease.
When the measured pH differs from the target value, the instrument automatically adds an appropriate amount of titrant.
For alkaline constant-pH control, sodium hydroxide solution is commonly used to compensate for acid production. For acidic control systems, an acid solution can be added when alkaline substances are generated.
The amount of titrant added reflects the chemical changes occurring during the reaction.
Unlike endpoint titration, where only the final titrant volume is important, pH-Stat titration records the relationship between titrant consumption and reaction time.
This allows researchers to evaluate:
Reaction rate changes
Enzyme activity
Hydrolysis progress
Buffer capacity
Reaction kinetics
The constant-pH function of automatic potentiometric titration systems uses feedback control logic to maintain the set pH value and automatically adjust titrant addition according to real-time changes.
Constant-pH control is the key function that distinguishes pH-Stat titration from conventional titration methods.
The control process can be divided into three stages.
Before starting the experiment, the operator sets the desired pH value according to the reaction requirements.
The selected pH may depend on:
Reaction mechanism
Enzyme activity requirements
Chemical stability
Research purpose
During the reaction, the pH electrode continuously sends measurement signals to the titration system.
If the reaction causes the pH to move away from the preset value, the system detects the difference immediately.
The control system calculates the required titrant amount and automatically adjusts the dosing process.
Through feedback control, the instrument maintains the reaction environment at a stable pH condition.
Compared with manual adjustment, automatic constant-pH control reduces operator intervention and improves repeatability, especially for long-duration experiments.
A complete pH-Stat titration system requires several components working together to maintain accurate control.
Component | Function |
|---|---|
Potentiometric titration instrument | Controls titrant addition and records measurement data |
pH electrode | Measures real-time pH changes |
Reaction vessel | Holds the sample and reaction system |
Stirring system | Ensures uniform reaction conditions |
Temperature control equipment | Maintains required reaction temperature |
Titrant solution | Compensates for pH changes |
A typical setup allows researchers to control the reaction environment while monitoring how much titrant is consumed over time.
For automated laboratory applications, the GT60 Closed-Loop Titrator can be used for constant-pH experiments requiring automatic titrant adjustment, real-time pH monitoring, and reaction data recording.
The system supports detailed recording of:
pH changes
Reaction time
Titrant volume
It can also display pH-time and volume-time curves for reaction analysis.
When selecting a system for pH-Stat titration, several technical factors influence experimental reliability.
Some reactions require extended periods of stable pH control.
The constant-pH function supports a maximum control time of 32767 minutes (approximately 22.75 days), allowing long-term experiments such as slow reaction studies and kinetic analysis.
Because pH control depends on accurate feedback, measurement resolution is important.
The system provides a pH resolution of 0.0001 pH, supporting precise monitoring of small pH changes during reactions.
The system can record real-time changes in:
pH
Time
Titrant volume
The generated curves include:
pH-time (pH-t) curves
Volume-time (V-t) curves
These curves help researchers understand different reaction stages and evaluate reaction behavior.
Comparison | Conventional Titration | pH-Stat Titration |
|---|---|---|
Main purpose | Determine concentration or endpoint | Maintain constant pH and study reaction behavior |
Control method | Fixed titrant addition or endpoint detection | Feedback-based pH control |
Main data | Final titrant volume | Titrant consumption over time |
Suitable applications | Routine quantitative analysis | Reaction kinetics, enzyme analysis, hydrolysis studies |
Automation level | May require manual adjustment | Automatic control and data recording |
The choice between these two methods depends on the research objective.
If the goal is only concentration measurement, conventional titration may be sufficient. However, if the reaction process itself needs to be studied under controlled pH conditions, pH-Stat titration provides additional information.
pH-Stat titration is widely used in fields where reaction progress is closely related to pH changes. By maintaining a stable pH environment and recording titrant consumption, this method provides information that cannot be obtained from simple endpoint titration.
The main applications include enzyme analysis, pharmaceutical research, food science, chemical reaction studies, environmental analysis, and material-related research.
One of the most important applications of pH-Stat titration is enzyme activity measurement.
Many enzymatic reactions involve the generation or consumption of hydrogen ions. When enzymes catalyze substrate conversion, the resulting chemical changes may cause the reaction system pH to shift.
By keeping the pH constant, pH-Stat titration allows researchers to evaluate enzyme activity based on the amount of titrant required to compensate for these changes.
Typical applications include:
Protease activity measurement
Lipase activity analysis
Urease and esterase reaction studies
Enzyme reaction kinetics research
Optimization of enzyme reaction conditions
In enzyme engineering research, pH-Stat titration can also be used to study the influence of pH and temperature on enzyme activity.
Many pharmaceutical compounds are affected by pH conditions, especially regarding dissolution, stability, and chemical transformation.
pH-Stat titration can be applied in research areas including:
Drug dissolution behavior
pH-dependent stability studies
Hydrolysis reaction analysis
Acid-base property evaluation
By maintaining a controlled pH environment, researchers can investigate how pharmaceutical compounds behave under different reaction conditions.
Food and fermentation processes often involve continuous acid production or consumption.
For example, microorganisms in fermentation systems may produce organic acids such as lactic acid, acetic acid, or citric acid, causing gradual pH changes.
pH-Stat titration can support:
Fermentation process monitoring
Food protein hydrolysis studies
Buffer capacity evaluation
Food additive performance analysis
Polysaccharide degradation research
In protein hydrolysis studies, maintaining constant pH helps researchers evaluate hydrolysis behavior and optimize enzymatic processing conditions.
Many chemical reactions require controlled pH conditions to accurately study reaction mechanisms and stability.
Applications include:
Acid anhydride hydrolysis studies
Epoxy resin curing reaction research
Polyester reaction monitoring
Surface-active agent stability evaluation
Polymer reaction kinetics analysis
For slow chemical processes, constant-pH control helps maintain stable reaction conditions and provides continuous information about reaction progress.
pH-Stat titration can also be used for studying acid-base behavior in environmental systems.
Applications include:
Water buffering capacity measurement
Soil acid neutralization capacity evaluation
Wastewater treatment chemical consumption analysis
Sludge reaction studies
By measuring the amount of acid or base required to maintain a certain pH value, researchers can evaluate the ability of environmental samples to resist pH changes.
Corrosion reactions are often influenced by solution acidity.
During corrosion processes, hydrogen ions may be consumed, causing changes in pH. Maintaining a constant pH environment allows researchers to investigate corrosion behavior under controlled conditions.
Applications include:
Metal corrosion rate evaluation
Corrosion inhibitor performance studies
Acid cleaning process optimization
Electroplating processes are highly sensitive to pH changes.
Changes in plating solution pH may affect:
Coating quality
Current efficiency
Solution stability
Additive behavior
pH-Stat titration can be used to study:
Plating bath pH stability
Additive consumption
Electroless plating reaction behavior
For slow inorganic reactions involving acid-base changes, pH-Stat titration provides a controlled method for studying reaction behavior.
Applications include:
Mineral dissolution rate studies
Complex formation reactions
Precipitation process research
Cement and cementitious material hydration studies
A practical application of pH-Stat titration is the determination of alkaline protease activity in feed samples.
Alkaline protease is commonly used in the feed industry because it can hydrolyze proteins, improve protein utilization, and support feed processing efficiency.
The constant-pH titration method evaluates enzyme activity by maintaining the reaction system at a fixed pH and measuring the amount of sodium hydroxide solution consumed during the reaction.
During the reaction:
Alkaline protease hydrolyzes protein peptide bonds.
Acidic groups are continuously released.
The reaction system pH decreases.
The automatic titration system detects the pH change.
Sodium hydroxide solution is automatically added to maintain pH 9.0.
The consumed NaOH volume within a fixed reaction period is used to calculate enzyme activity.
The application uses the following configuration:
Equipment | Purpose |
|---|---|
GT60 automatic potentiometric titration system | Maintains constant pH and records titration data |
Water-phase pH composite electrode | Provides continuous pH measurement |
150 mL titration vessel | Holds sample and reaction solution |
Pipette | Sample and reagent preparation |
Constant-temperature water bath with magnetic stirring | Maintains reaction temperature and mixing |
The sample preparation and measurement process includes:
Approximately 5 g of feed sample is placed into a 150 mL titration vessel.
100 mL phosphate buffer solution with pH 7.6 is added.
The sample is stirred until the mixture is uniform.
A 2 mol/L sodium hydroxide solution is used to adjust the initial pH to 9.0.
The reaction vessel is placed into a 50°C constant-temperature water bath with stirring.
Alkaline protease is added.
A 0.5 mol/L sodium hydroxide solution is automatically added to maintain constant pH.
The constant-pH titration process continues for two hours.

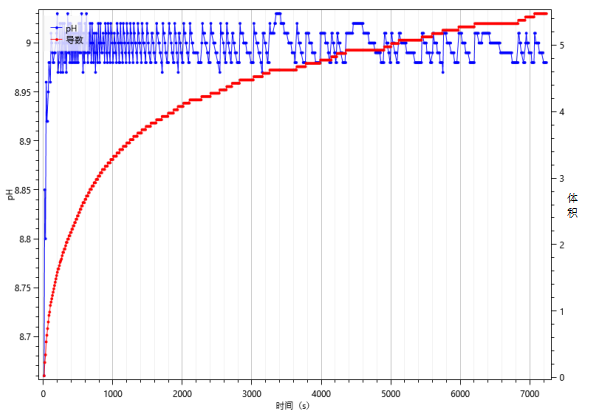

The titration curve records the relationship between pH, reaction time, and titrant volume.
The curve generally shows three reaction stages:
The curve demonstrates the relationship between pH control and titrant consumption during the reaction. The blue line represents pH variation, while the red curve shows the cumulative titrant volume change. During the experiment, the system continuously adjusted NaOH addition to maintain the target pH condition, allowing reaction progress to be evaluated through titrant consumption.
At the beginning of the reaction, substrate concentration is sufficient.
The enzymatic reaction rate is relatively high, causing faster pH reduction and higher NaOH addition speed.
As the reaction continues, the reaction rate becomes more stable.
NaOH consumption increases more linearly, reflecting a relatively stable reaction process.
When available substrate decreases, the reaction rate gradually slows.
The titrant addition rate becomes lower and eventually stabilizes.
A smooth curve indicates stable constant-pH control, uniform reaction conditions, and reliable experimental data.
Although automated systems improve consistency, several factors still influence the quality of results.
The pH electrode directly affects measurement accuracy.
Poor electrode performance may result in:
Delayed response
Incorrect pH adjustment
Unstable control
Reaction temperature can influence reaction speed, especially in biochemical applications.
Stable temperature control helps maintain consistent reaction conditions.
The concentration of the acid or base solution affects the relationship between titrant volume and reaction progress.
Accurate titrant preparation is important for reliable calculations.
Insufficient mixing may create uneven pH distribution.
Continuous stirring helps ensure that the measured pH represents the entire reaction system.
When selecting a pH-Stat titration system, laboratories should consider the actual requirements of the application.
Confirm whether the experiment involves:
Enzyme reactions
Hydrolysis processes
Buffer studies
Chemical kinetics
Material stability research
Different experiments require different operating periods.
Long-term reactions require stable constant-pH operation and reliable data recording.
Consider whether the system needs:
Real-time pH recording
Titrant volume tracking
pH-time curves
Volume-time curves
Exportable experimental data
The electrode, tubing, and liquid-handling components should be suitable for the reaction system and titrant used.
pH-Stat titration is a constant-pH analytical technique that provides detailed information about reaction behavior by automatically compensating for pH changes during a process.
Through real-time pH monitoring, feedback-based titrant adjustment, and continuous data recording, it is especially valuable for enzyme activity measurement, reaction kinetics studies, hydrolysis analysis, and other pH-sensitive applications.
The GT60 Closed-Loop Titrator provides the functions required for automated constant-pH experiments, including controlled titrant addition, pH monitoring, and reaction curve analysis. With features such as long-term constant-pH operation, high-resolution pH measurement, and detailed data recording, it supports laboratory research requiring stable and reproducible pH control.
pH-Stat titration is used for studying reactions where pH must remain constant during the process. Common applications include enzyme activity testing, hydrolysis studies, reaction kinetics analysis, and buffer capacity evaluation.
The system continuously measures pH through an electrode and automatically adds acid or base titrant when the measured value deviates from the preset pH level.
Normal titration usually focuses on endpoint detection, while pH-Stat titration maintains a fixed pH and measures titrant consumption over time.
Because enzyme reactions often cause pH changes, maintaining constant pH allows researchers to evaluate enzyme activity by measuring the amount of titrant needed to compensate for these changes.
A pH-Stat titration system can provide pH changes, titrant consumption, reaction time data, and curves such as pH-time and volume-time relationships.
Important factors include pH control stability, electrode compatibility, reaction duration, titrant accuracy, automation functions, and data recording requirements.
